Build and deploy a Dropwizard application using Minikube and Terraform
Use MiniKube and Terraform to deploy a Dropwizard application
I’ve been using Minikube to deploy a Dropwizard application. Extended to include Terraform. This post is a guide to building and deploying a Dropwizard application to Minikube.
The Github repo is here
Dropwizard
Checkout the Github repo.
- Run
mvn clean installto build your application - Start application with `java
- -jar target/tester-1.0-SNAPSHOT.jar server config.yml`
- To check that your application is running enter url
http://localhost:8080
Health Check
To see your applications health enter url http://localhost:8081/healthcheck
Kubernetes
I’ve used the following as a reference:
Install kubectl, minikube and docker
$ minikube start --driver=docker
😄 minikube v1.33.1 on Ubuntu 22.04
✨ Using the docker driver based on user configuration
📌 Using Docker driver with root privileges
👍 Starting "minikube" primary control-plane node in "minikube" cluster
🚜 Pulling base image v0.0.44 ...
💾 Downloading Kubernetes v1.30.0 preload ...
> preloaded-images-k8s-v18-v1...: 342.90 MiB / 342.90 MiB 100.00% 1.40 Mi
> gcr.io/k8s-minikube/kicbase...: 481.58 MiB / 481.58 MiB 100.00% 1.67 Mi
🔥 Creating docker container (CPUs=2, Memory=7900MB) ...
🐳 Preparing Kubernetes v1.30.0 on Docker 26.1.1 ...
▪ Generating certificates and keys ...
▪ Booting up control plane ...
▪ Configuring RBAC rules ...
🔗 Configuring bridge CNI (Container Networking Interface) ...
🔎 Verifying Kubernetes components...
▪ Using image gcr.io/k8s-minikube/storage-provisioner:v5
🌟 Enabled addons: storage-provisioner, default-storageclass
💡 kubectl not found. If you need it, try: 'minikube kubectl -- get pods -A'
🏄 Done! kubectl is now configured to use "minikube" cluster and "default" namespace by default
Maven package
mvn package
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 3.283 s
[INFO] Finished at: 2024-08-01T19:47:20+01:00
[INFO] ------------------------------------------------------------------------
$ ls -ltr target/
tester-1.0-SNAPSHOT.jar
Build docker image
$ docker build -t hello:0.1.0 .
Sending build context to Docker daemon 38.02MB
Step 1/5 : FROM openjdk:21
---> 079114de2be1
Step 2/5 : EXPOSE 8080 8081
---> Using cache
---> 7cd7760a9e0e
Step 3/5 : COPY target/tester-1.0-SNAPSHOT.jar tester-1.0-SNAPSHOT.jar
---> Using cache
---> 02489db8a175
Step 4/5 : COPY config.yml config.yml
---> Using cache
---> b4a98013e982
Step 5/5 : ENTRYPOINT ["java","-jar","tester-1.0-SNAPSHOT.jar","server","config.yml"]
---> Using cache
---> 46ce1e8b99b2
Successfully built 46ce1e8b99b2
Successfully tagged hello:0.1.0
Apply kubernetes application-config.yml
$ kubectl apply -f application-config.yml
configmap/application-config created
Apply kubernetes application-deployment.yml
$ kubectl apply -f application-deployment.yml
deployment.apps/hello created
service/hello created

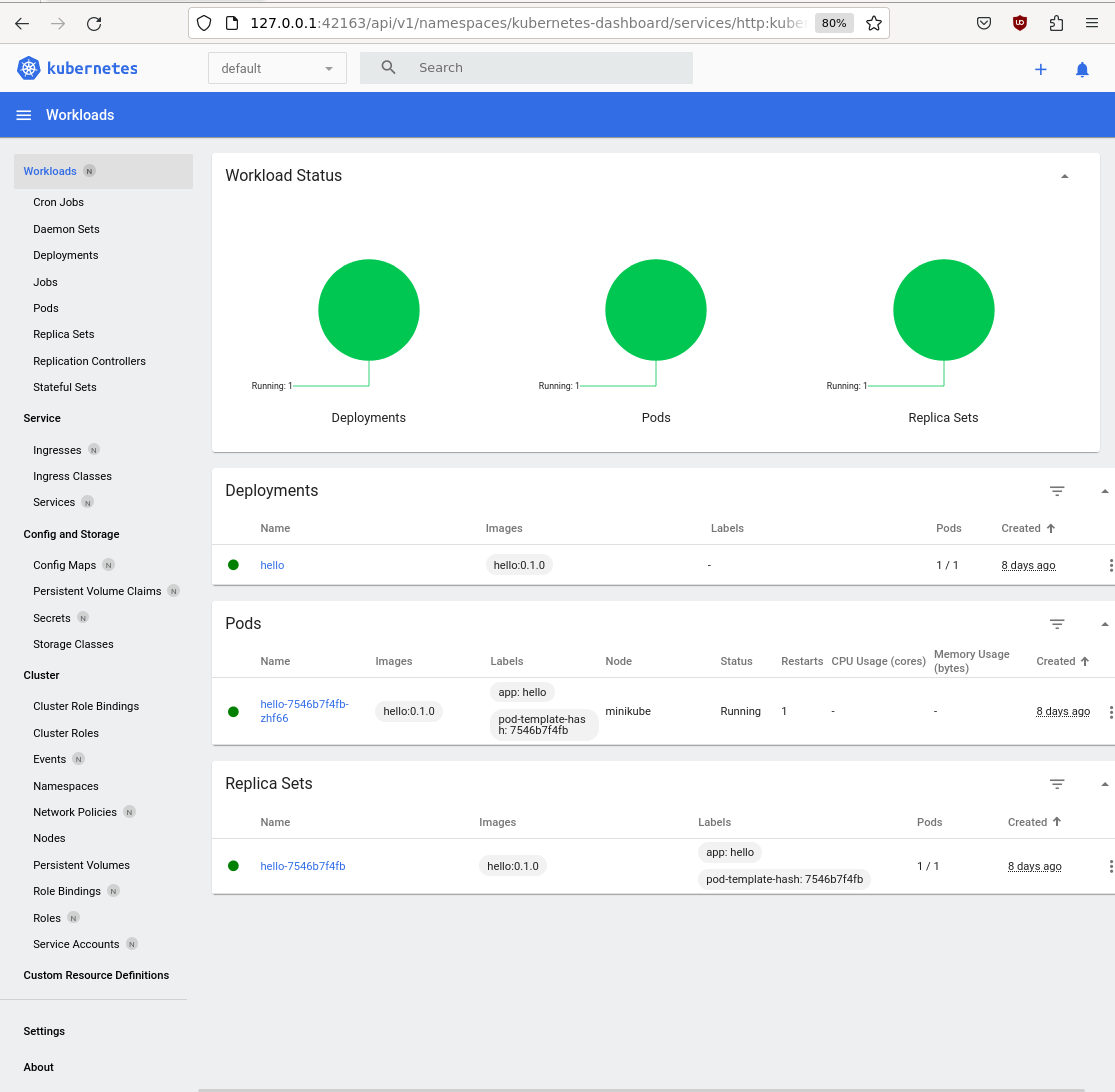

minikube dashboard
$ minikube dashboard
🔌 Enabling dashboard ...
▪ Using image docker.io/kubernetesui/metrics-scraper:v1.0.8
▪ Using image docker.io/kubernetesui/dashboard:v2.7.0
💡 Some dashboard features require the metrics-server addon. To enable all features please run:
minikube addons enable metrics-server
🤔 Verifying dashboard health ...
🚀 Launching proxy ...
🤔 Verifying proxy health ...
If you see the error:
Container image "hello:0.1.0" is not present with pull policy of Never
Error: ErrImageNeverPull
Run the following command:
eval $(minikube docker-env)
*Rebuild* the docker image.
$ kubectl get pods -l app=hello -o yaml |grep containerPort
- containerPort: 8080
- containerPort: 8081

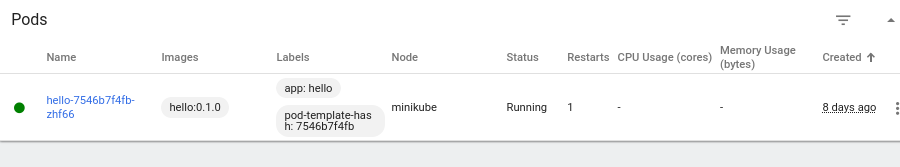

$ kubectl get pods
NAME READY STATUS RESTARTS AGE
hello-7546b7f4fb-zhf66 1/1 Running 1 (18m ago) 8d
The kubectl port forward command will redirect the request (to the pod):
$ kubectl port-forward hello-7546b7f4fb-zhf66 8080
Forwarding from 127.0.0.1:8080 -> 8080
Forwarding from [::1]:8080 -> 8080
Point your web browser at http://127.0.0.1:8080/hello-world?name=milesd
You will see the port redirection:
Handling connection for 8080
Terraform
Terraform
This section is optional. You can use Terraform to deploy the hello:0.1.0 docker image to kubernetes (minikube):
Install Terraform
Create providers.tf and main.tf
Create a file named providers.tf:
terraform {
required_providers {
kubernetes = {
source = "hashicorp/kubernetes"
version = "2.11.0"
}
}
}
provider "kubernetes" {
config_path = "~/.kube/config"
config_context = "minikube"
}
Create a file named main.tf:
resource "kubernetes_namespace" "hello" {
metadata {
name = "x"
}
}
resource "kubernetes_deployment" "hello" {
metadata {
name = "terraform-example"
labels = {
test = "MyExampleApp"
}
namespace = "x"
}
spec {
replicas = 1
selector {
match_labels = {
test = "MyExampleApp"
}
}
template {
metadata {
labels = {
test = "MyExampleApp"
}
}
spec {
container {
image = "hello:0.1.0"
name = "example"
port {
container_port = 8080
}
}
}
}
}
}
The important part is the image = “hello:0.1.0”, and the container_port = 8080.
Run the following commands (terraform init, terraform plan, terraform apply, terraform destroy):
terraform init
$ terraform init
Initializing the backend...
Initializing provider plugins...
- Finding hashicorp/kubernetes versions matching "2.11.0"...
- Installing hashicorp/kubernetes v2.11.0...
- Installed hashicorp/kubernetes v2.11.0 (signed by HashiCorp)
Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.
Terraform has been successfully initialized!
You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.
If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.
$
terraform plan
$ terraform plan
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# kubernetes_deployment.hello will be created
+ resource "kubernetes_deployment" "hello" {
+ id = (known after apply)
+ wait_for_rollout = true
+ metadata {
+ generation = (known after apply)
+ labels = {
+ "test" = "MyExampleApp"
}
+ name = "terraform-example"
+ namespace = "x"
+ resource_version = (known after apply)
+ uid = (known after apply)
}
+ spec {
+ min_ready_seconds = 0
+ paused = false
+ progress_deadline_seconds = 600
+ replicas = "1"
+ revision_history_limit = 10
+ selector {
+ match_labels = {
+ "test" = "MyExampleApp"
}
}
+ strategy (known after apply)
+ template {
+ metadata {
+ generation = (known after apply)
+ labels = {
+ "test" = "MyExampleApp"
}
+ name = (known after apply)
+ resource_version = (known after apply)
+ uid = (known after apply)
}
+ spec {
+ automount_service_account_token = true
+ dns_policy = "ClusterFirst"
+ enable_service_links = true
+ host_ipc = false
+ host_network = false
+ host_pid = false
+ hostname = (known after apply)
+ node_name = (known after apply)
+ restart_policy = "Always"
+ service_account_name = (known after apply)
+ share_process_namespace = false
+ termination_grace_period_seconds = 30
+ container {
+ image = "hello:0.1.0"
+ image_pull_policy = (known after apply)
+ name = "example"
+ stdin = false
+ stdin_once = false
+ termination_message_path = "/dev/termination-log"
+ termination_message_policy = (known after apply)
+ tty = false
+ port {
+ container_port = 8080
+ protocol = "TCP"
}
+ resources (known after apply)
}
+ image_pull_secrets (known after apply)
+ readiness_gate (known after apply)
+ volume (known after apply)
}
}
}
}
# kubernetes_namespace.hello will be created
+ resource "kubernetes_namespace" "hello" {
+ id = (known after apply)
+ metadata {
+ generation = (known after apply)
+ name = "x"
+ resource_version = (known after apply)
+ uid = (known after apply)
}
}
Plan: 2 to add, 0 to change, 0 to destroy.
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if you run "terraform apply" now.
$
terraform apply
$ terraform apply
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# kubernetes_deployment.hello will be created
+ resource "kubernetes_deployment" "hello" {
+ id = (known after apply)
+ wait_for_rollout = true
+ metadata {
+ generation = (known after apply)
+ labels = {
+ "test" = "MyExampleApp"
}
+ name = "terraform-example"
+ namespace = "x"
+ resource_version = (known after apply)
+ uid = (known after apply)
}
+ spec {
+ min_ready_seconds = 0
+ paused = false
+ progress_deadline_seconds = 600
+ replicas = "1"
+ revision_history_limit = 10
+ selector {
+ match_labels = {
+ "test" = "MyExampleApp"
}
}
+ strategy (known after apply)
+ template {
+ metadata {
+ generation = (known after apply)
+ labels = {
+ "test" = "MyExampleApp"
}
+ name = (known after apply)
+ resource_version = (known after apply)
+ uid = (known after apply)
}
+ spec {
+ automount_service_account_token = true
+ dns_policy = "ClusterFirst"
+ enable_service_links = true
+ host_ipc = false
+ host_network = false
+ host_pid = false
+ hostname = (known after apply)
+ node_name = (known after apply)
+ restart_policy = "Always"
+ service_account_name = (known after apply)
+ share_process_namespace = false
+ termination_grace_period_seconds = 30
+ container {
+ image = "hello:0.1.0"
+ image_pull_policy = (known after apply)
+ name = "example"
+ stdin = false
+ stdin_once = false
+ termination_message_path = "/dev/termination-log"
+ termination_message_policy = (known after apply)
+ tty = false
+ port {
+ container_port = 8080
+ protocol = "TCP"
}
+ resources (known after apply)
}
+ image_pull_secrets (known after apply)
+ readiness_gate (known after apply)
+ volume (known after apply)
}
}
}
}
# kubernetes_namespace.hello will be created
+ resource "kubernetes_namespace" "hello" {
+ id = (known after apply)
+ metadata {
+ generation = (known after apply)
+ name = "x"
+ resource_version = (known after apply)
+ uid = (known after apply)
}
}
Plan: 2 to add, 0 to change, 0 to destroy.
Do you want to perform these actions?
Terraform will perform the actions described above.
Only 'yes' will be accepted to approve.
Enter a value: yes
kubernetes_namespace.hello: Creating...
kubernetes_deployment.hello: Creating...
kubernetes_namespace.hello: Creation complete after 0s [id=x]
kubernetes_deployment.hello: Creation complete after 2s [id=x/terraform-example]
Apply complete! Resources: 2 added, 0 changed, 0 destroyed.
$
Use the kubectl command to check the deployment and pods:
$ kubectl get deployments -n x
NAME READY UP-TO-DATE AVAILABLE AGE
terraform-example 1/1 1 1 63s
$
$ kubectl get pods -n x
NAME READY STATUS RESTARTS AGE
terraform-example-7fb55bccdd-nwt6k 1/1 Running 0 97s
$
$kubectl get pods -n x -o yaml |grep containerPort
- containerPort: 8080
$
The kubectl port forward command will redirect the request (to the pod):
$ kubectl port-forward -n x terraform-example-7fb55bccdd-nwt6k 8080
Forwarding from 127.0.0.1:8080 -> 8080
Forwarding from [::1]:8080 -> 8080
Use the curl command to go to http://127.0.0.1:8080/hello-world?name=alice
$ curl http://127.0.0.1:8080/hello-world?name=alice
{"id":2,"content":"Hello, alice!"}
$
The kubectl port forward will redirect the request:
$ kubectl port-forward -n x terraform-example-7fb55bccdd-nwt6k 8080
Forwarding from 127.0.0.1:8080 -> 8080
Forwarding from [::1]:8080 -> 8080
Handling connection for 8080
Handling connection for 8080
terraform destroy
$ terraform destroy
kubernetes_namespace.hello: Refreshing state... [id=x]
kubernetes_deployment.hello: Refreshing state... [id=x/terraform-example]
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
- destroy
Terraform will perform the following actions:
# kubernetes_deployment.hello will be destroyed
- resource "kubernetes_deployment" "hello" {
- id = "x/terraform-example" -> null
- wait_for_rollout = true -> null
- metadata {
- annotations = {} -> null
- generation = 1 -> null
- labels = {
- "test" = "MyExampleApp"
} -> null
- name = "terraform-example" -> null
- namespace = "x" -> null
- resource_version = "10005" -> null
- uid = "9441f854-4935-451a-bb96-be6d59df2ce4" -> null
# (1 unchanged attribute hidden)
}
- spec {
- min_ready_seconds = 0 -> null
- paused = false -> null
- progress_deadline_seconds = 600 -> null
- replicas = "1" -> null
- revision_history_limit = 10 -> null
- selector {
- match_labels = {
- "test" = "MyExampleApp"
} -> null
}
- strategy {
- type = "RollingUpdate" -> null
- rolling_update {
- max_surge = "25%" -> null
- max_unavailable = "25%" -> null
}
}
- template {
- metadata {
- annotations = {} -> null
- generation = 0 -> null
- labels = {
- "test" = "MyExampleApp"
} -> null
name = null
# (4 unchanged attributes hidden)
}
- spec {
- active_deadline_seconds = 0 -> null
- automount_service_account_token = true -> null
- dns_policy = "ClusterFirst" -> null
- enable_service_links = true -> null
- host_ipc = false -> null
- host_network = false -> null
- host_pid = false -> null
- node_selector = {} -> null
- restart_policy = "Always" -> null
- share_process_namespace = false -> null
- termination_grace_period_seconds = 30 -> null
# (5 unchanged attributes hidden)
- container {
- args = [] -> null
- command = [] -> null
- image = "hello:0.1.0" -> null
- image_pull_policy = "IfNotPresent" -> null
- name = "example" -> null
- stdin = false -> null
- stdin_once = false -> null
- termination_message_path = "/dev/termination-log" -> null
- termination_message_policy = "File" -> null
- tty = false -> null
# (1 unchanged attribute hidden)
- port {
- container_port = 8080 -> null
- host_port = 0 -> null
name = null
- protocol = "TCP" -> null
# (1 unchanged attribute hidden)
}
- resources {}
}
}
}
}
}
# kubernetes_namespace.hello will be destroyed
- resource "kubernetes_namespace" "hello" {
- id = "x" -> null
- metadata {
- annotations = {} -> null
- generation = 0 -> null
- labels = {} -> null
- name = "x" -> null
- resource_version = "9983" -> null
- uid = "7e2b974c-4c81-4e8c-8b35-1344075cc83e" -> null
# (1 unchanged attribute hidden)
}
}
Plan: 0 to add, 0 to change, 2 to destroy.
Do you really want to destroy all resources?
Terraform will destroy all your managed infrastructure, as shown above.
There is no undo. Only 'yes' will be accepted to confirm.
Enter a value: yes
kubernetes_namespace.hello: Destroying... [id=x]
kubernetes_deployment.hello: Destroying... [id=x/terraform-example]
kubernetes_deployment.hello: Destruction complete after 0s
kubernetes_namespace.hello: Destruction complete after 6s
Destroy complete! Resources: 2 destroyed.
$
The port forward will stop:
E0813 13:22:00.190729 58487 portforward.go:413] an error occurred forwarding 8080 -> 8080: error forwarding port 8080 to pod 915cbd57ef726b33b7f929a650602d0dfe627b7de455738bf8d786b777619103, uid : Error response from daemon: No such container: 915cbd57ef726b33b7f929a650602d0dfe627b7de455738bf8d786b777619103
error: lost connection to pod
The curl command will no longer work:
$ curl http://127.0.0.1:8080/hello-world?name=alice
curl: (52) Empty reply from server
